Conformer Search
The goal in Conformer optimization is to find the most stable 3D structure of a molecule which differ by dihedral angles, bond angles and bond lengths. We use tensor trains to avoid the exponential complexity of the conformer search problem.
A more detailed explanation can be found in our paper.
Representation of a molecule
The internal representation of a molecule in TQchem is the MolecularSystem class, which can be initialized from a variety of popular molecule representations. TQchem supports conversion from:
rdkit.Mol
ase.Atoms
smiles string
xyz file/xyz block
For example, below is an example of creating a MolecularSystem object from an xyz block:
[1]:
from tqchem.viewer import plot_3D_molecule
from tqchem.molgraph import molecularSystem
xyz_block = """13
C -1.044461 -0.825824 0.211330
C -0.285778 0.490479 0.068986
O -0.589226 1.155464 -1.136284
C 1.232755 0.259051 0.185495
O 1.610069 -0.323671 1.406869
H -2.115750 -0.643571 0.208448
H -0.791736 -1.487830 -0.614662
H -0.764530 -1.309872 1.143418
H -0.605130 1.182551 0.857893
H -0.296714 0.606873 -1.873951
H 1.557840 -0.441551 -0.590202
H 1.752598 1.214578 0.025047
H 1.331217 0.249819 2.128887"""
initial_molecule = molecularSystem(xyz_block)
plot_3D_molecule(initial_molecule.ase).show()
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Perform optimization
Here we run ttconf with 2 sweeps and rank 2 for the xyz representation of propylene glycol.
This could also be done from the command line using:
tqchem ttconf --xyz propyleneglycol.xyz --rank 2 --n_sweeps 2
Or for the smiles string:
tqchem ttconf CC(CO)O --rank 2 --n_sweeps 2
[2]:
from tqchem.ttconf.factory import ttconf_optimizer
ttopt = ttconf_optimizer(initial_molecule, filter_type="energy")
results = ttopt.optimize()
best_conformer_xyz, energy_best_conformer = results.minimum_energy_xyz()
best_conformer = molecularSystem(best_conformer_xyz)
print(f"{energy_best_conformer = }")
sweep | index | Objective | Runtime
----------------------------------------------
1 | 3 | -506.703733 | 0:00:01.470481
1 | 2 | -506.736523 | 0:00:03.579517
1 | 1 | -506.739942 | 0:00:04.397643
2 | 1 | -506.739942 | 0:00:04.398248
2 | 2 | -506.739942 | 0:00:07.443877
2 | 3 | -506.739942 | 0:00:08.495648
energy_best_conformer = -506.73994247418153
Visualize the molecule with lowest energy
[3]:
plot_3D_molecule(best_conformer_xyz).show()
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Optimize structure using CREST:
Although global optimization in TTConf includes local optimization, it is often useful to perform a “final” local optimization of the structure at the end of the global optimization. Below we perform the optimization of a conformational ensemble with an energy window of 6 kcal/mol from the minimal conformer using the CREST wrapper built into TQchem:
[4]:
from tqchem.chem import ase_from_molecule_file_content
from tqchem.ttconf.crest_wrapper import launch_crest
import numpy as np
xyzs = results.minimum_energy_ensemble(
energy_window=0.26,
rmsd_threshold=0.125,
)
ensemble = [ase_from_molecule_file_content(xyz) for xyz in xyzs]
optimized_ensemble, optimized_energies = launch_crest(
ensemble,
optlevel="normal",
)
best_conformer_crestOpt = np.argmin(optimized_energies)
energy_best_conformer_crestOpt = optimized_energies[best_conformer_crestOpt]
molecule_best_conformer_crestOpt = optimized_ensemble[best_conformer_crestOpt]
Compare energies of rdkit and ttconf conformers
[5]:
from tblite.ase import TBLite
# Energy of initial rdkit conformer
initial_molecule.ase.calc = TBLite(method="GFN2-xTB", verbosity=0)
energy_initial = initial_molecule.ase.get_potential_energy()
# Energy of the TTconf optimized, but not gradient optimized molecule
best_conformer.ase.calc = TBLite(method="GFN2-xTB", verbosity=0)
energy_best_conformer = best_conformer.ase.get_potential_energy()
energies = {
"E(initial geometry) ": energy_initial,
"E(TTconf geometry) ": energy_best_conformer,
"E(TTconf+CREST geometry)": energy_best_conformer_crestOpt,
}
print("\n".join(f"{label}: {e:.7f}" for label, e in energies.items()))
E(initial geometry) : -506.7007039
E(TTconf geometry) : -506.7399425
E(TTconf+CREST geometry): -506.7423777
[6]:
print("TTconf best geometry:")
plot_3D_molecule(molecule_best_conformer_crestOpt).show()
TTconf best geometry:
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Bond selection

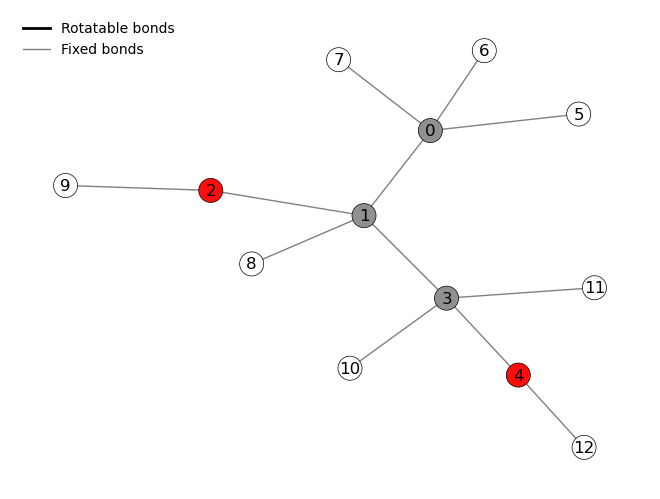

It is possible to select the bonds that are considered rotatable. For the bond selection we first investigate the molecular graph and then select the bonds (as tuple of 2 atom IDs) and corresponding dihedral values (as array).
[7]:
import numpy as np
xyz_block = """13
C -1.044461 -0.825824 0.211330
C -0.285778 0.490479 0.068986
O -0.589226 1.155464 -1.136284
C 1.232755 0.259051 0.185495
O 1.610069 -0.323671 1.406869
H -2.115750 -0.643571 0.208448
H -0.791736 -1.487830 -0.614662
H -0.764530 -1.309872 1.143418
H -0.605130 1.182551 0.857893
H -0.296714 0.606873 -1.873951
H 1.557840 -0.441551 -0.590202
H 1.752598 1.214578 0.025047
H 1.331217 0.249819 2.128887"""
initial_molecule = molecularSystem(xyz_block)
initial_molecule.draw()
[8]:
ttopt = ttconf_optimizer(
initial_molecule,
charge=0,
solvent=None,
method="GFN2-xTB",
ensemble_optimization=True,
set_rotatable_bonds={(0, 1): np.linspace(0, 360, 12, endpoint=False)},
)
results = ttopt.optimize()
one_dihedral_xyz, energy_one_dihedral = results.minimum_energy_xyz()
one_dihedral = molecularSystem(one_dihedral_xyz)
print(f"{energy_one_dihedral = }")
plot_3D_molecule(one_dihedral_xyz).show()
sweep | index | Objective | Runtime
----------------------------------------------
1 | 1 | -506.704737 | 0:00:00.618454
2 | 1 | -506.704737 | 0:00:00.618814
energy_one_dihedral = -506.7047367387411
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Ring systems
At the moment, only 5- and 6-rings can be optimized with TTconf as we implemented a different way of treating rings.
[9]:
from tqchem.viewer import plot_3D_molecule
initial_molecule = molecularSystem("O1CCCCC1CCO")
plot_3D_molecule(initial_molecule.ase).show()
ttopt = ttconf_optimizer(
initial_molecule,
filter_type="energy",
charge=0,
solvent=None,
method="GFN2-xTB",
ensemble_optimization=True,
)
results = ttopt.optimize()
best_conformer_xyz, energy_best_conformer = results.minimum_energy_xyz()
best_conformer = molecularSystem(best_conformer_xyz)
print(f"{energy_best_conformer = }")
plot_3D_molecule(best_conformer_xyz).show()
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
sweep | index | Objective | Runtime
----------------------------------------------
1 | 4 | -823.571253 | 0:00:02.313301
1 | 3 | -823.597379 | 0:00:07.225027
1 | 2 | -823.598813 | 0:00:10.513202
1 | 1 | -823.649913 | 0:00:11.509907
2 | 1 | -823.649913 | 0:00:11.510494
2 | 2 | -823.649955 | 0:00:13.192635
2 | 3 | -823.749278 | 0:00:16.634608
2 | 4 | -823.749278 | 0:00:17.982260
energy_best_conformer = -823.7492781160647
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
For bigger rings like a 7-ring the optimization with default parameters will fail.
[10]:
initial_molecule = molecularSystem("O1CCC(CCN)CCC1")
plot_3D_molecule(initial_molecule.ase).show()
try:
ttopt = ttconf_optimizer(initial_molecule)
except Exception:
print("Impossible to run calculations for 7-ring with default settings.")
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Impossible to run calculations for 7-ring with default settings.
It is, however, possible to avoid the separate treatment of rings by setting single_batframe=True
[11]:
initial_molecule = molecularSystem("O1CCC(CCN)CCC1", single_batframe=True)
ttopt = ttconf_optimizer(
initial_molecule,
charge=0,
filter_type="boltzmann energy difference",
solvent=None,
method="GFN2-xTB",
ensemble_optimization=True,
)
results = ttopt.optimize()
best_conformer_xyz, energy_best_conformer = results.minimum_energy_xyz()
best_conformer = molecularSystem(best_conformer_xyz)
print(f"{energy_best_conformer = }")
plot_3D_molecule(initial_molecule.ase).show()
sweep | index | Objective | Runtime
----------------------------------------------
1 | 3 | -8.432938 | 0:00:01.921600
1 | 2 | -14.969960 | 0:00:04.880685
1 | 1 | -16.708092 | 0:00:06.968987
2 | 1 | -16.708092 | 0:00:06.969724
2 | 2 | -16.716360 | 0:00:10.981002
2 | 3 | -19.317325 | 0:00:13.139157
energy_best_conformer = -892.0589298575549
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
